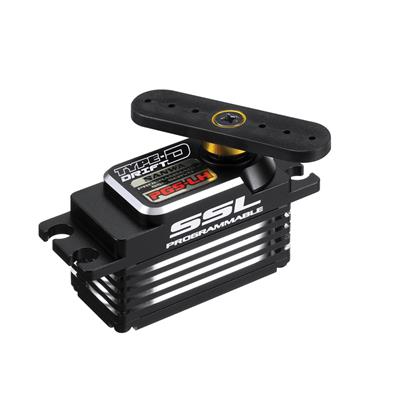

Sanwa PGS-LH Type D Servo SA107A54476A
Original price was: £159.99.£151.99Current price is: £151.99.Save £8.00
Out of stock Product is not in our store or currently available from our supplier. The item can still be ordered but lead times will vary.
Description
Description
Sanwa PGS-LH Type D Servo SA107A54476A
Written specialized program for drift – SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
– PGS SETTING GEAR-COMPATIBLE
– SUPER RESPONSE (SSR) MODE-COMPATIBLE
– HIGH RESPONSE (SHR) MODE-COMPATIBLE
– Li-Po 2 CELL-COMPATIBLE
– LOW PROFILED
– HIGH SPEED TYPE
– BRUSH LESS MOTOR
– FULL ALUMINUM CASE
– FULL METAL GEAR (Strengthening Gears)
– AL HEAT SINK
Craving “TYPE-D (DRIFT)” on top case
Programmable Servo to be compatible with SSL & Telemetry at Launch
– Setting Adjustment by wireless from Radio
– Setting Adjustment to connect Servo with Setting Gear
?In case of using with incompatible Gyro for SSL (SGS-01C/SGS-01D), the servo cannot be set by transmitter through SSL function.
– Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.
– Setting Items
– SSL-CH (SSL Channel Setting) – STRETC (Stretcher Adjustment) – BOOST (BOOST Adjustment)
– D-Band (Dead Band Adjustment) – MV-MID (Middle Torque Adjustment)
– MV-END (Later Torque Adjustment) – BREAK (Break Adjustment)
?MV-HOLD (Power Adjustment at whole area) ?MV-FRQ (Feeling Adjustment at whole area)
?MAX-PW (MAX Duty Adjustment)
? Setting Gear is necessary for ?setting.
Speed
0.09 sec/60° (7.4V)
0.11 sec/60° (6.0V)
Torque
15.6 kg/cm (7.4V)
12.8 kg/cm (6.0V)
Dimensions
40.2 x 20.5 x 26.0mm
Weight
53g
Specification
Specification
| Gear Material | Metal Gear |
|---|---|
| Brand | Sanwa |
| Servo Operation | Digital Servo |
| Servo Power | 15.0kg to 24.9kg, 8.0kg to 14.9kg |
| Servo Size | Low Profile |
| Servo Voltage | Servo 6v, Servo 7.4v |
