A VQ Models Pilatus PC-6 Porter 85″ ARF

Description

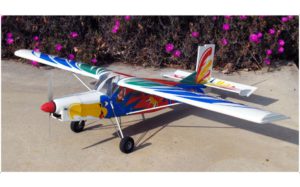

Pilatus PC-6 Porter

Overview
The full size Pilatus PC-6 is a known ‘STOL’ workhorse capable of operating in rugged, short-field conditions for light transport roles, both civilian and military. This accurate replica of the Pilatus PC-6 features an all lite-ply and balsa construction. The detailed covering will make it a beautiful addition to anyone’s hangar. The professional painted fiberglass cowl as well as pre-hinged control surfaces will have you in the air in no time. This model is electric power friendly with the integrated battery hatch located in front of windshield on top of nose/fuselage. This facilitates quick and easy battery pack changes between flights!

Pilatus PC-6 Porter Features
All Balsa and Light-Ply construction
Fully covered with weathered detailing
Fibreglass cowling
Control surfaces pre-hinged and installed
Two piece wing with aluminium wing joiner
Pilot door and rear door can open-close
Big battery hatch for Electric version

Includes:
Assembly instructions with stage-by-stage illustrations – [ Download ]
Fuselage
Tail plane and fin
Wheels
Fiberglass motor cowl
Wing panels
Undercarriage and wheel fairings
Small items
Canopy
Linkage hardware pack
Required Hardware (Not Supplied)
Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP).

Recommended Hardware
Electric Motor & ESC – TBC
Servos – 5 x MacGregor MG5921HV 20.3Kg.cm/0.12s High Voltage Servo and 3 (2 for EP) x MacGregor MG1703DS 3.3Kg.cm/0.10s Mini Digital Servo
IC Engine: DLE-20 (Petrol) 2-Stroke | Saito FG-21 (Petrol) 4-Stroke | Saito FA-125A (Glow) 4-Stroke

Specifications:
Wingspan: 85in (2.17mm)
Fuselage Length: 61.4in (1560mm)
Weight (Ready to fly): 4.1 – 4.3kg
Engine: 20cc (Gas/Petrol) / .90 (2-Stroke) / 1.20 (4-Stroke) / Equivalent electric motor
Radio: 7 channels with 8 (7 for EP) servos
Electric Motor: 800-1000W
