MacGregor MG7232HV 31.5Kg.cm/0.09s High Voltage Servo MAC7232HV
Original price was: £73.95.£66.49Current price is: £66.49.Save £7.46
In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
Description
Description
MacGregor MG7232HV 31.5Kg.cm/0.09s High Voltage Servo MAC7232HV
Features:
High Performance High Voltage Coreless Digital Servo
High-Precision Metal Gears With Hard Anodising
Full CNC Machined Aluminium Case
Dual Bearing Support
Slow(Soft) Start Function as Standard
JR Style Lead and Plug
25T Spline
Overview
The MG7232HV is part of MacGregor’s range of high voltage digital servos. This high voltage, high torque servo has been designed for use with large scale & aerobatic aircraft.
MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
Specifications
Dead band: 1µs
Working frequency: 1520µs / 330hz
Motor: Coreless Motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.09sec/60°
Stall Torque (6.0V): 26.2kg.cm (363.83oz/in)
Stall Torque (8.4V): 31.5kg.cm (437.43oz/in)

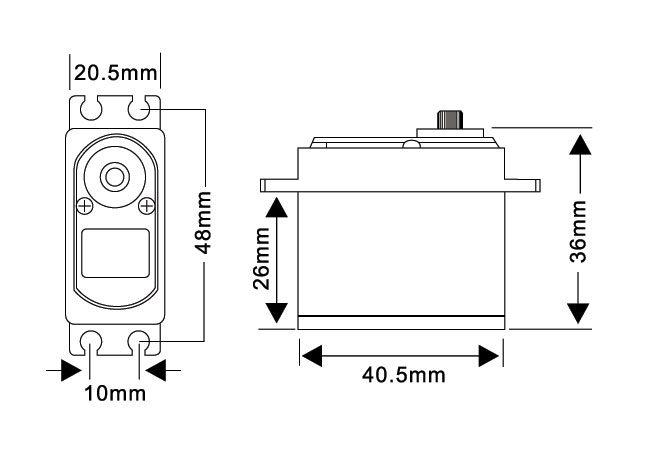

Dimensions: 40.5 x 20.5 x 36mm /1.59 x 0.80 x 1.43in
Weight: 72g (2.54oz)
Connector Wire Length: JR 265mm (10.43in)
Bearing: 2BB
Specification
Specification
| Servo Power | 25.0kg + |
|---|---|
| Servo Voltage | Servo 6v, Servo 7.4v |
| Servo Operation | Digital Servo |
| Brand | MacGregor |
| Gear Material | Metal Gear |
| Servo Size | Standard |
