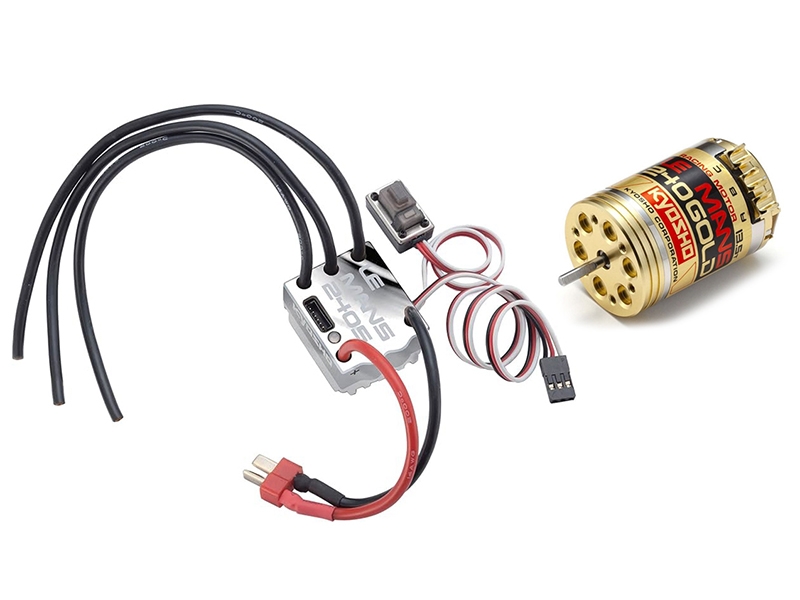

Kyosho Le Mans 240S Brushless ESC 60A and Le Mans 240 Gold BLS 13.5T Brushless Motor – Legendary Series 37051B-37034
Original price was: £279.99.£199.99Current price is: £199.99.Save £80.00
Out of stock Product is not in our store or currently available from our supplier. The item can still be ordered but lead times will vary.
Description
Description
Kyosho Le Mans 240S Brushless ESC 60A and Le Mans 240 Gold BLS 13.5T Brushless Motor – Legendary Series 37051B-37034
Le Mans 240S ESC is optimized for Le Mans 240S brushless motors. This new design locates all 6 FETs on the base and uses fins shaped into the underside of the aluminum case to dissipate heat and negate the need for a cooling fan. In addition to its excellent heat control and durability, the hard aluminum case is finished with nickel plating and lazer etched with the “LE MANS 240S” and “KYOSHO” logos. With all 14-gauge wires covered in black silicon, the design aligns its superior performance with quality presentation. Using a superplug (Deans) battery connector, the compact design eliminates difficult wiring with the capacitor built into the case. The simple design also allows six setting parameters to be set with only the Set key, without using the program card.
*1: Sensor cable is not included. Please purchase separately.
*2: Standard lengths of the sensor cables are as follows (according to ESC mounting position).
– TF-7/ FAZER/ PLAZMA F1 -> 100mm
– PLAZMA Lm/ PLAZMA Ra/ Gambado R246 -> 150mm
– OPTIMA/ TOMAHAWK -> 170mm
– SCORPION/ BEETLE -> 190mm
2s: 13.5t / 3200kv
3s 15.5t / 2200kv
Motor Description, Features and Specs
This is Kyosho LE MANS 240T 13.5T Gold Brushless Motor.
Feature:
- For Kyosho Optima, Javelin, Turbo Optima, Optima Mid
- Material: Metal
- Color: Gold
Specification:
- Motor Diameter: 35.8mm
- Motor Lenght: 51.2mm
- Shaft Length: 15mm
- Shaft Diameter: 3.175mm
- Weight: 173g
- Turns: 13.5T
- Rated Voltage: 7.2V – 7.4V
- RPM@7.4V: 24790
- KV(RPM/V): 3350
- Max Current: 45A
- Max Power: 380W
- Max Efficiency: 90%
Specification
Specification
| Brand | Kyosho |
|---|---|
| Motor Type | Brushless |
| Scale | 1:10 |
