Kyosho EP Plazma 2WD MK.3 Limited A2 1:12 Kit Legendary Series K.30639B

Description

Kyosho EP Plazma 2WD MK.3 Limited A2 1:12 Kit Legendary Series K.30639B

1/12 scale was the center of on-road electric R/C car racing in the 1980’s and was dominated by the Kyosho Fantom EP-4WD series. However, the Fantom enjoyed a strong rivalry with the rear drive 2WD Plazma series, also made by Kyosho. The Plazma’s final and ultimate model was the MKIII Limited which was released in 1987. More than 30 years later it lives again as part of the Kyosho Vintage Series! Like other Vintage Series models, the reborn Plazma MKIII Limited is true to the original design but features some modern adaptations for the latest R/C systems and power sources. Now you can relive the glory days of the 1980’s while enjoying the power and performance of modern racing! While sharing some components with the Fantom EP-4WD Ext, the simple structure of the Plazma makes it lighter and faster than the Fantom over circuits with enough grip. Like the 1987 original, the new Plazma MKIII Limited features a carbon fiber main chassis, but the original black FRP upper plate and A-shaped joint bar are now also made of carbon fiber. The rear differential unit has been upgraded to the same high-performance ball-diff installed on the Fantom EP-4WD Ext Kyosho 60th Anniversary Model released in 2023. The front suspension uses the same simple king-pin & coil structure with adjustable caster angle, but now also includes two king-pin diameter types for precision adjustment of control characteristics. The α-2 open cockpit and aerodynamic body are faithfully reproduced, and all aluminum parts are finished in Kyosho Works silver color. With its dynamic performance and definitive style, the new Plazma MKIII Limited lights up the Kyosho Vintage Series!

• The long-awaited 1/12 Plazma revival with its famous agile 2WD performance is the 16th installment of Kyosho’s Vintage Series.
• Recreation of the pure racing Limited Edition model released in 1987.
• Retains the key design features from the 1987 original but with updated components to suit modern R/C systems and power sources.
• All aluminum parts feature the Plazma’s unique silver finish.
• Incorporates the proven reliability of the 3-point suspension system standard in 1/12 EP racers.

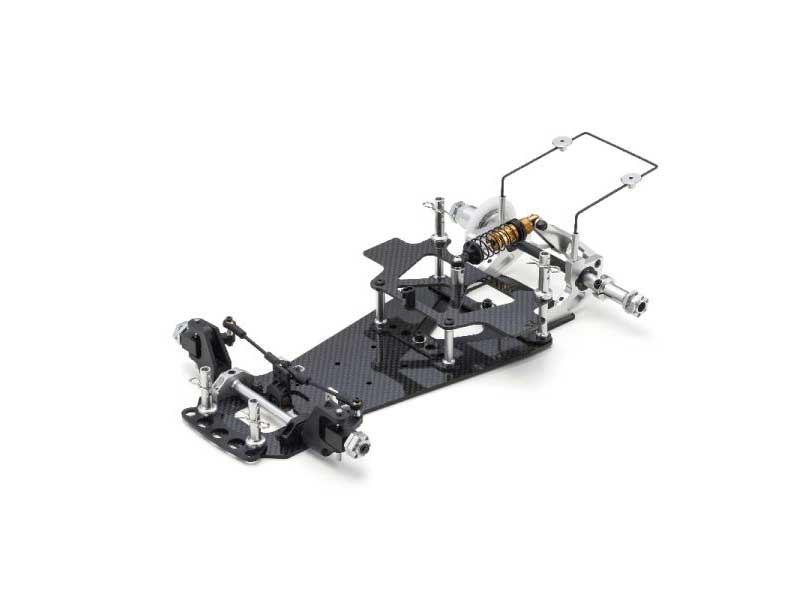

• Equipped with a high-rigidity carbon main chassis & upper plate with an FRP rear A-bar that enhances tire grip with moderate flex.
• Features a king-pin coil front suspension system that allows fine tuning of control feel.
• Includes rear oil damper with a dial-adjustable spring tension tuning.
• Ball differential can be adjusted by tightening the nut.
• Standard equipment includes lightweight and high-strength φ6 carbon rear shaft.
• Unassembled kit includes pre-glued and trued front and rear tires and an unpainted body.

Technical Data

• Length 340mm
• Width 172mm
• Height 83mm
• 3P suspension system with direct drive
• Wheelbase 203-204mm（Adjustable）
• Tread F:137mm/R:133mm
• Tire F:φ48×23mm/R:φ53×35mm
• Gear ratio 3.38：1
• Weight approx.850g(with GAB4202）
• ※Maximum Speed approx.55km/h(with Le Mans480G）
• ※Driving Time approx.23minutes(with Le Mans480G）

Kit Contents

• Chassis kit
• Adhesive shaped tire
• Unpainted body
• Decal
• Wheel wrench（12/4.0）
• 5.5/4.5wrench
• Caster angle jig
• Shock wrench
• Shock oil
• Ball differential grease

Required for Operation

• Radio transmitter with 2 channel, 1-servo(Receiving size: Max 37x30x16.5mm / Servo size: Max 37×16.5x30mm )
• 1 Electronic speed controller (ESC size：38x31x23mm)
• 540 Class Motor
• Battery for chassis(Battery size：138x48x24.5mm)
• Batteries for transmitter
• Charger for Battery
• Paint for body
