Kyosho EP Fantom 4WD PZF T-33 1:12 Kit - Legendary Series K.30640B

Kyosho

Kyosho EP Fantom 4WD PZF T-33 1:12 Kit – Legendary Series K.30640B

Name: Kyosho EP Fantom 4WD PZF T-33 1:12 Kit - Legendary Series K.30640B
SKU: K.30640B
Availability: InStock

Original price was: £299.99.Current price is: £279.99.Save £20.00

Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.

Description

Kyosho EP Fantom 4WD PZF T-33 1:12 Kit – Legendary Series K.30640B

In the 1980s, 1/12 scale electric on-road racing was defined by fierce competition between 4WD models with ladder chains and agile 2WD cars with 3-point (3P) suspension. Kyosho’s Phantom EP-4WD dominated on both temporary parking-lot tracks and permanent asphalt circuits, while the rear 2WD Plazma series leveraged its lightweight design and simple drivetrain to excel where battery efficiency was key.
From this competitive era emerged a hybrid — the Plazma Phantom — which combined the Plazma’s main chassis and rear suspension with the Phantom’s drivetrain. Piloted by Kyosho works drivers, it blended 4WD traction with 3P suspension adaptability to deliver outstanding race results. But no kit was ever sold, leaving enthusiasts to build conversions from individual parts. Now, decades later, the wait is over. The Phantom PZF T-33 brings the Plazma Phantom to market as a kit for the first time. More than just a parts combination, the Phantom PZF T-33 features newly developed components for performance beyond what was possible in the ’80s. The quick-handling T-33 body also returns, expanding the body lineup. Compared to building a Plazma Phantom from separate re-releases, the Phantom PZF delivers better cost efficiency and puts a true works-spec machine within reach. Now enhanced with modern refinements for even greater performance!

Kyosho Vintage Series No.19 is the first full-kit release of the special 4WD Plazma + Phantom model that was popular in the late 1980s.

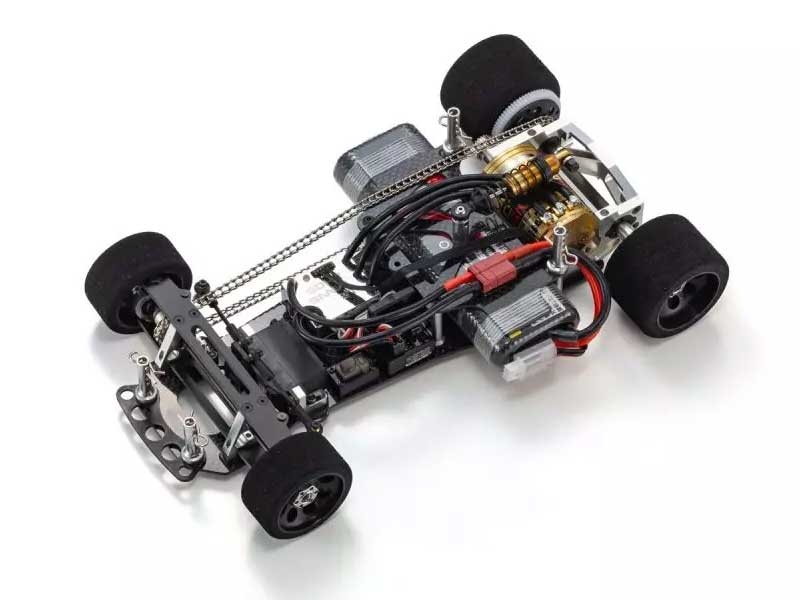

Ladder-chain 4WD delivers high-level traction even on low-grip surfaces.

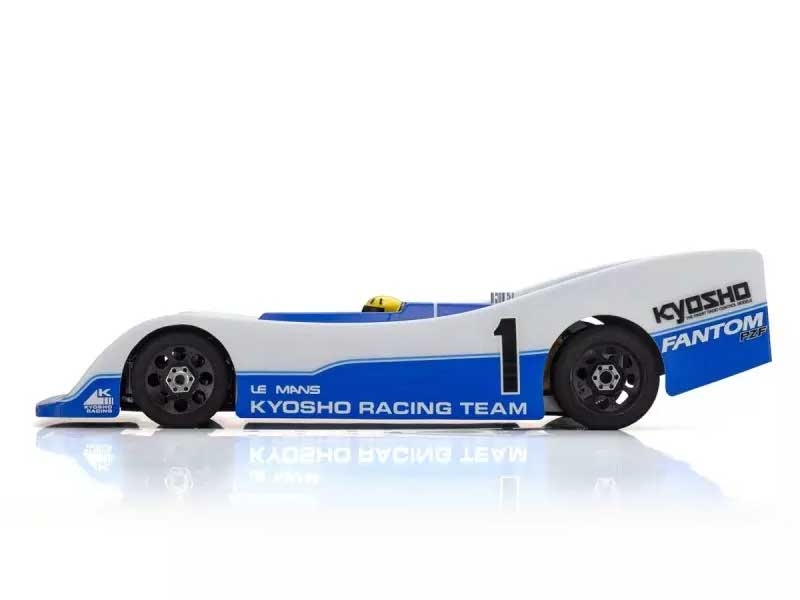

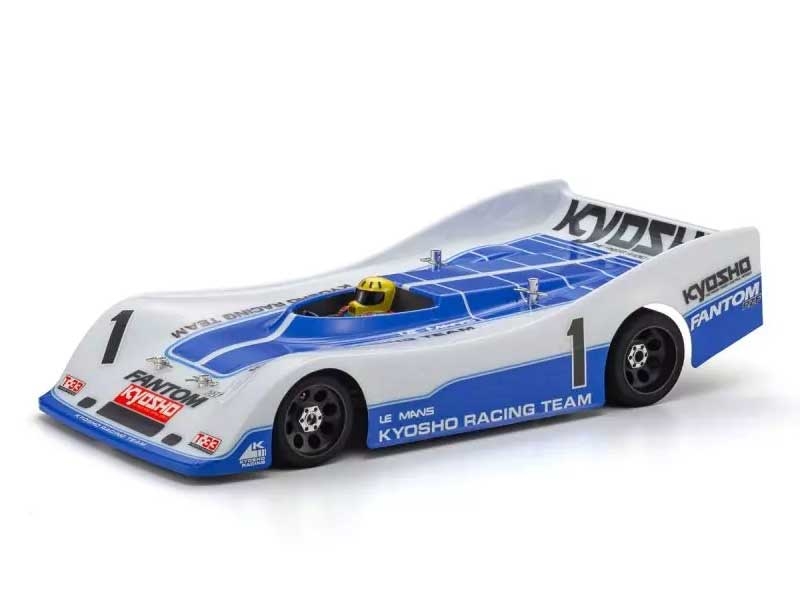

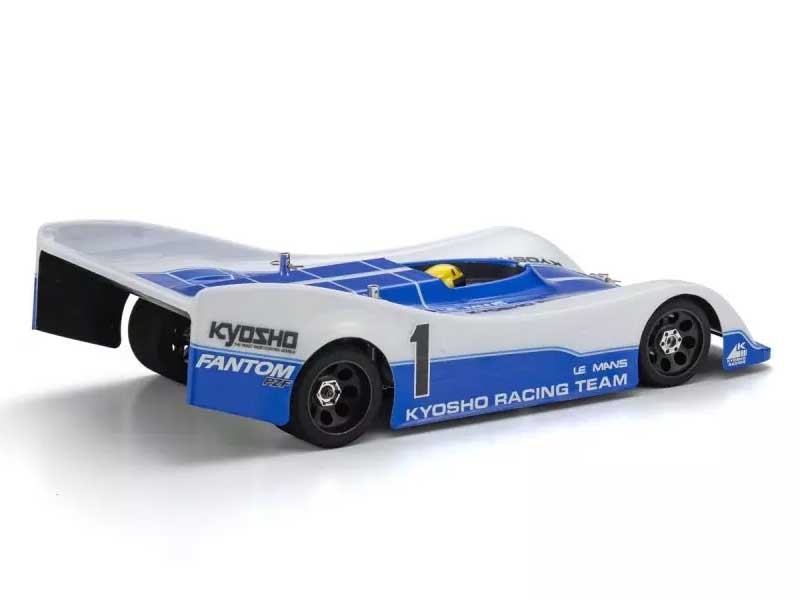

Includes reproduction of the T33 body, renowned for its sharp handling. Body is also compatible with existing Phantom & Plazma series.

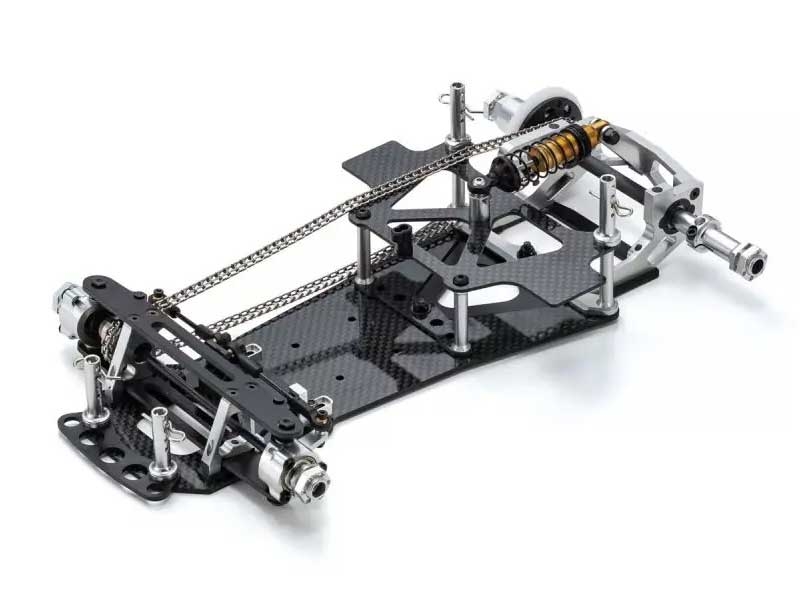

High-rigidity carbon main chassis and upper plate are paired with an FRP rear A-bar with optimal flex for enhanced tire grip.
Newly developed rear A-bar joints with ball-connect design.
1.5 mm thick spacers for the front axle mount allow adjustable ride height.
Kingpin coil-type front suspension absorbs vibrations from surface gaps for optimal front tire traction.
Tires come pre-mounted and trued on black wheels, eliminating the need for tire-setting.
Dial-adjustable oil shock allow easy spring tension adjustments.

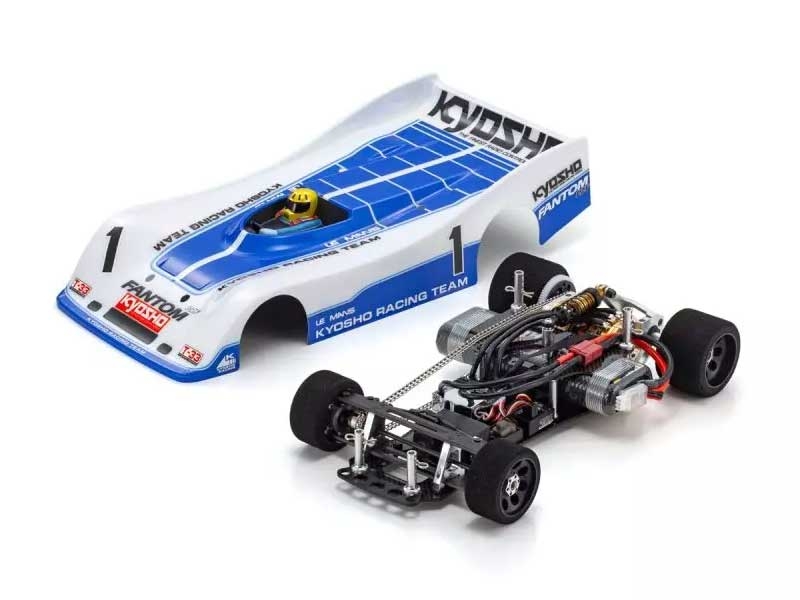

Unassembled kit includes pre-mounted front and rear tires and an unpainted body.
Technical Data

Length 353mm
Width 172mm
Height 86mm
3P suspension system with direct drive
Wheelbase 201-202mm（Adjustable）
Tread F:137mm/R:133mm
Tire F:φ48×23mm/R:φ53×35mm
Gear ratio 3.38：1
Weight approx 900g(with GAB4202）
Motor 540class（sold separately）
Used transmitter 2ch1servo1ESC
※※Maximum Speed approx.55km/h (with Le Mans480G）
※Driving Time approx.23minutes(with Le Mans480G）
※Depends on driving conditions

Kit Contents

Chassis kit
Adhesive shaped tire
Unpainted body
Decal
Wheel wrench（12/4.0）
5.5/5.0wrench
Shock wrench
Shock oil
Required for Operation

Radio transmitter with 2 channel, 1-servo
(Receiver size:L37xW27xH16.5mm / Servo size:L37xW16.5xH30mm)
Recommended:No.82147 Syncro 2.4GHz TX/RX set / No.82278 Mini servo・KS3031-04M
1 Electronic speed controller (ESC size：38x31x23mm)
Recommended:No.37051B LE MANS 240S ESC
540 Motor
Recommended:No.37035 LE MANS 480 GOLD Brushless Motor
Battery for chassis
Recommended:No.GAB4202 Gens ace LiPo 4000
Battery size：138x48x24.5mm
Batteries for transmitter
Charger for Battery
Paint for body
