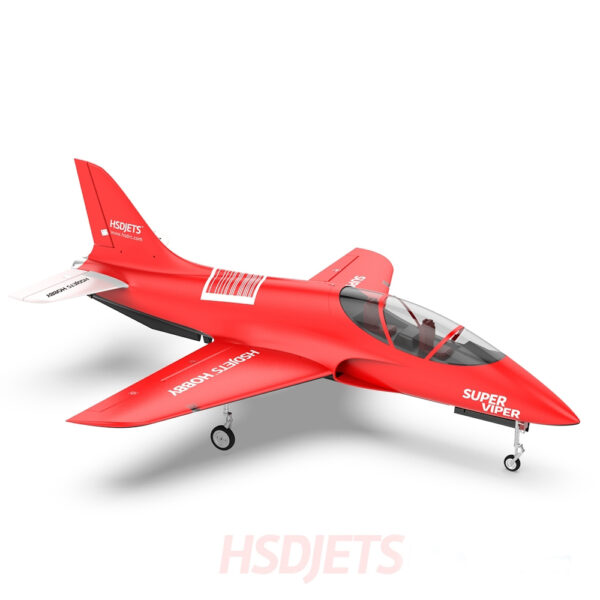

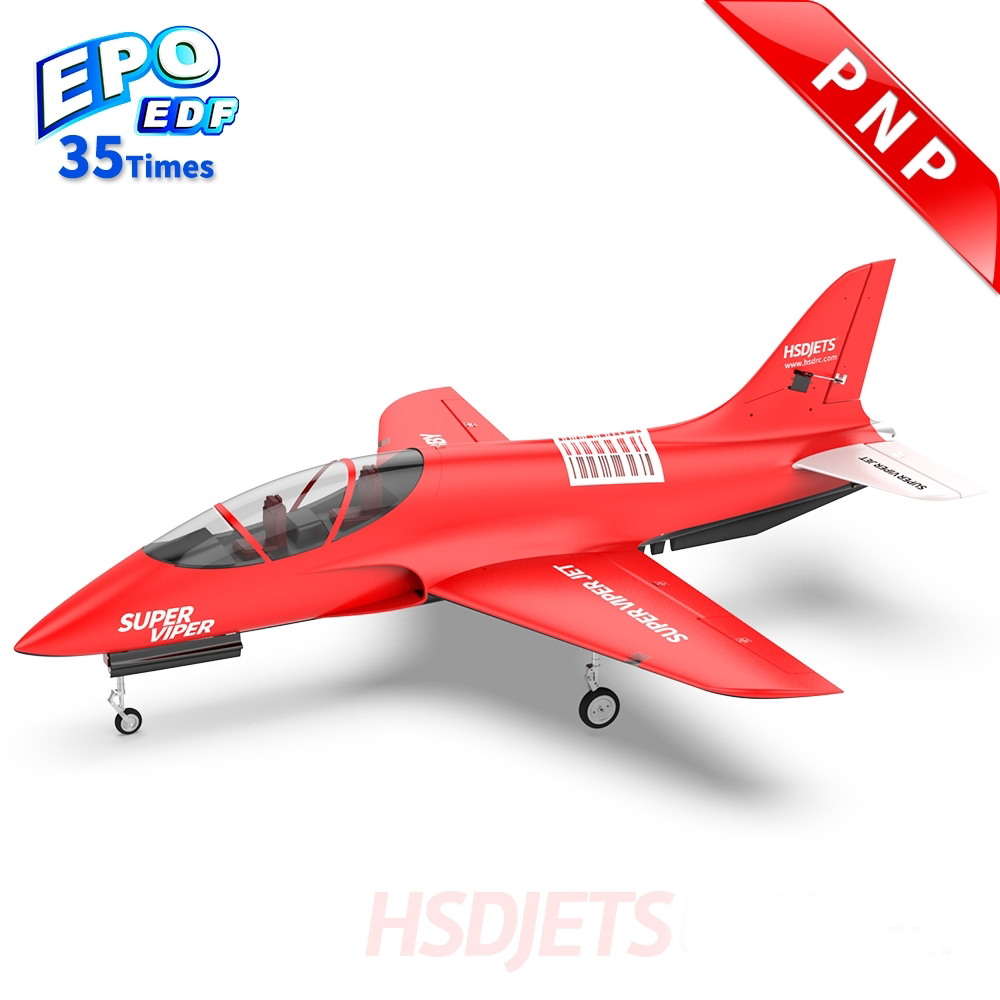

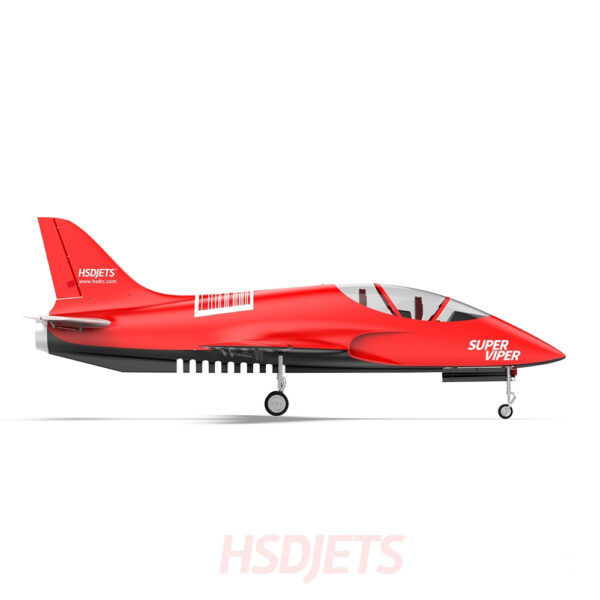

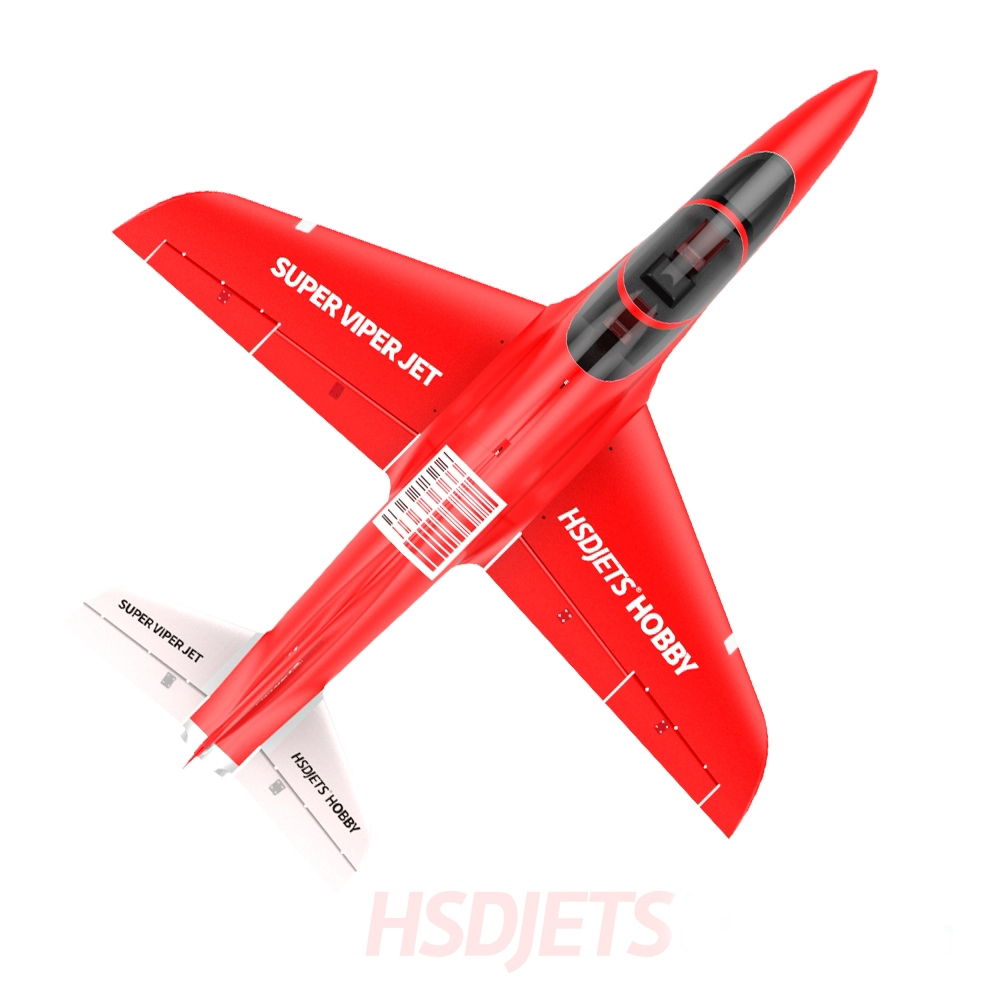

HSDJets Super Viper Red 6kg 105mm S-EDF 12S PNP
£1,449.99
In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
Description
Description
HSDJets Super Viper Red V4 105mm S-EDF 12S PNP
Produced with a beautiful scale appearance, made from a EPO material for strength and weight.
HSDJets Super Viper Red Specifications:
| Wingspan | 1500mm (59.1in) |
| Length | 1663mm (65.5in) |
| Flying Weight | 5kg (11 lb) with 12S Battery |
| S-EDF/Motor | S-EDF 105mm 4258/700KV brushless |
| Number of EDF Blade | 11 blades |
| Cruising speed | about 180 km/h |
| Flying time | about 3-5 mins |
| Wing area | 34.28 dm2 |
| Wing load | 145.9 g/dm2 |
| Main material | 35 times EPO |
| Painting surface | matte paint |
| Suitable experience level | □Zero basis □Beginner ■Intermediate □Advanced |
| PNP Assembly difficulty | □☆10mins ■★☆30mins □★★60mins |
| Suitable for ambient temperature | 0℃～40℃ |
| Radio System | 7 channel (required & not included) |
| ESC | 160A/12S Hobbywing AS150 |
| UBEC | 6A (2P Du-Pont and JR connector) |
| Control System | Integrated Mix-Control system |
| Servos | 25g×3 Metal gear with 190mm lead (Left & right ailerons & rudder forward) 25g×2 Metal gear with 480mm lead (Flap forward) 25g×2 Metal gear with 80mm lead (Elevator forward) 12g×1 Metal gear with 450mm lead (Nose wheel steering forward) 12g×1 Metal gear with 300mm lead (360°lock Hatch cover forward) |
| Recommended Receiver Battery | 2S,7.4V,1800～2000mAh,LiPo with T type plug(required & not included) |
| Recommended Power Battery | 6S,22.2V,5000～6000mAh×2,LiPo with AS150 type plug(required & not included) |
| Ailerons | Yes |
| Flaps | Yes |
| Elevator(Horizontal tail) | Yes |
| Rudder(Vertical tail) | Yes |
| General landing gear control system | Yes |
| LED lights system | Yes |
| Electromagnetic brake system | Yes |
| Reinforced gyro | Selective configuration (not included) |
| Packaging / Size | Packing Box + Outer Box(Card mark)/132.5×46×39.5(cm) |
| CG (Centre of Gravity) | 6.69in from the leading edge of the Main Wing |
| Landing Gears | Metal electric retractable hydraulic landing gear×3 |
| Battery Charger | LiPo battery charger (required & not included) |
PACKAGE INCLUDES:
- Fuselage×1
- Left Wing×1
- Right Wing×1
- Left Horizontal Stabilizer×1
- Right Horizontal Stabilizer×1
- Vertical Stabilizer×1
- Nose×1
- Cockpit canopy×1
- Main wing aluminium tube L=598mm external diameter 16mm×1
- Horizontal Stabilizer tube L=500mm external diameter 6mm×1
- Sticker×1
- Accessories Bag 1 ×1
- Screw (PWM4×35mm)×4 (Nose)
- Screw (PM3×14mm)×2 (Wing)
- Screw (PM3×10mm)×2 (Wing)
- Screw (PA2×12mm)×4
- Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
- Manual×1
REQUIRES:
- 7 channel radio system(radio & receiver) (required & not included)
- 6S,22.2V,5000～6000 mAh LiPo with AS150 type connector×2(required & not included)
- 2S,7.4V,1800～2000 mAh LiPo with T type connector×1(required & not included)
- LiPo battery charger (required & not included)
For further information: on flying your RC plane in a safe and responsible manner click here:
We have a wide range of Aircrafts on our website, for other EDF’s click here: EDF Aircrafts
Specification
Specification
| Aircraft Type | Jet & EDF |
|---|---|
| Assembly | ARTF & PNP |
| Brand | HSD Jets |
| Power | Electric |
