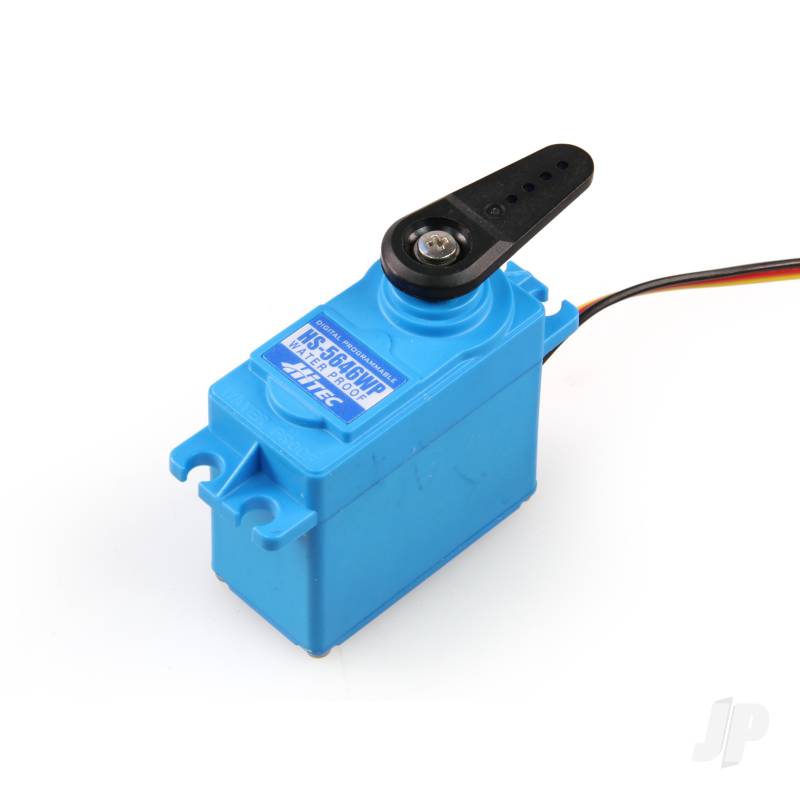

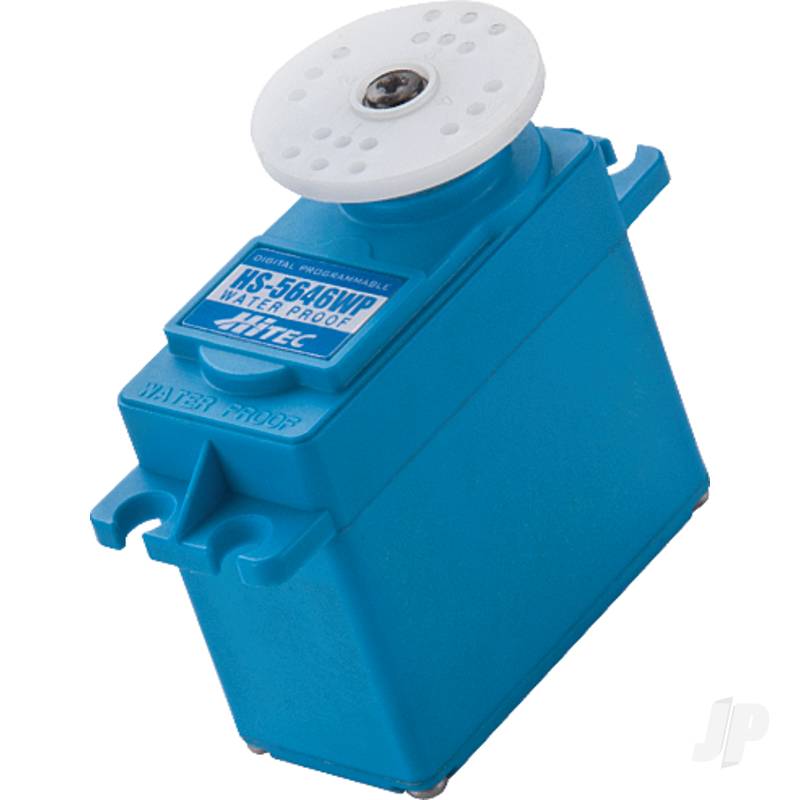

Hi-Tec HS5646WP WATERPROOF SERVO (HIGH VOLTAGE)
Original price was: £55.99.£50.39Current price is: £50.39.Save £5.60
In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
Description
Description
Hi-Tec HS5646WP WATERPROOF SERVO
- INDUSTRY FIRST! Waterproof High Voltage Digital Servo 6.0v to 7.4v
- Bearing Type – DUAL Ball Bearing
- Speed (6.0V/7.4V) – 0.20/ 0.18 sec @ 60 deg.
- Torque kg./cm. (6.0V/7.4V) – 11.3 / 12.9
- Size in Millimetres – 41.8 x 21.0 x 40.0
- Weight grams – 61g
- Gears – Metal Gears
Specifications
| Motor Type: | 3 Pole |
| Bearing Type: | Dual Ball Bearing |
| Speed (6.0V/7.4V): | 0.20 / 0.18 |
| Torque oz./in. (6.0V/7.4V): | 157 / 179 |
| Torque kg./cm. (6.0V/7.4V): | 11.3 / 12.9 |
| Size in Inches: | 1.65 x 0.83 x 1.57 |
| Size in Millimeters: | 41.8 x 21.0 x 40.0 |
| Weight oz.: | 2.15 |
| Weight g.: | 61 |
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.20 ~ 0.18 |
| Maximum Torque Range oz. / in. | 157 ~ 179 |
| Maximum Torque Range kg. / cm. | 11.3 ~ 12.9 |
| Current Draw at Idle | 4.5 mA |
| No Load Operating Current Draw | 330 mA |
| Stall Current Draw | 2,100 mA |
| Dead Band Width | 4 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.65 x 0.83 x 1.57 |
| Dimensions (Metric) | 41.8 x 21.0 x 40.0 |
| Weight (Ounces) | 2.15 |
| Weight (Gram) | 61.0 |
| Circuit Type | G1 Programable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | IP 67 |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
Specification
Specification
| Servo Power | 8.0kg to 14.9kg |
|---|---|
| Servo Voltage | Servo 6v |
| Servo Operation | Digital Servo |
| Brand | Hi Tec |
| Gear Material | Metal Gear |
| Servo Size | Standard |
