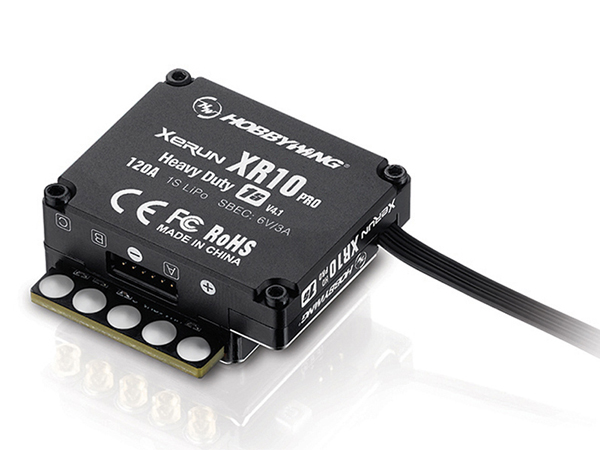

Hobbywing Xerun XR10 Pro 1S Heavy Duty V4.1 ESC – BLACK HW30112609
Original price was: £209.99.£188.99Current price is: £188.99.Save £21.00
Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
Description
Description
Hobbywing Xerun XR10 Pro 1S Heavy Duty V4.1 ESC – BLACK HW30112609
Internal power board covered with copper heat conducting confluence strip which is HobbyWing’s patent technology. The strip is convenient for transferring the internal heat rapidly to an integrated shell radiator, together with a high-speed heat dissipation fan, which build a high reliability heat dissipation system, to ensure the ESC is always in the best state of heat dissipation
Super BEC
Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.
Built-in Electronic Switch & Capacitor Module
Built-in electronic switch (with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design) and capacitor module save space and make the wiring simple and neat.
Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
Type:
Scale: 1/12th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No
Specs:
Cont./Peak Current: 120A/830A
Input Voltage: 1S Lipo/3-4 Cell NiMH
BEC Output: Switch Mode: 6V@3A
Wires and Connectors:
Input Wires:
Red-12AWG-200mm*1 Black-12AWG-200mm*1
Red-14AWG-200mm*1 Black-14AWG-200mm*1
Output Wires: Black-12AWG-200mm*3 Black-14AWG-200mm*3
Input Connectors: No
Output Connectors: No
ESC Programing via:
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
WiFi Module: Supported
Program Port: Separate Program Port
Size and Weight:
Size: 37.5x31x31mm
Weight: 46.7g
Applications:
Motors: SL BL Motors / SD BL Motors
Vehicles: 1/12th Touring Car
KV Rating/T Count: 1S LiPo: ≥3.0T(* ESC in Zero-timing/Blinky Mode)
Specification
Specification
| Brand | HobbyWing |
|---|
