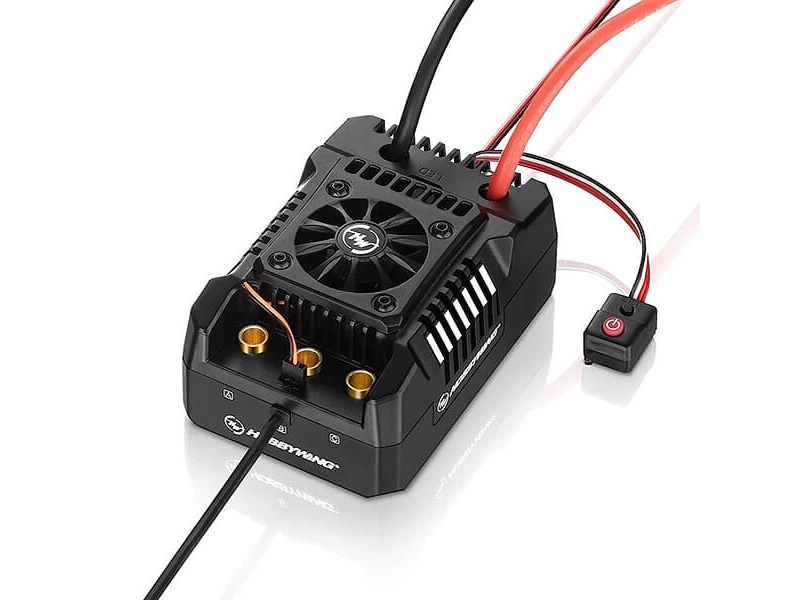

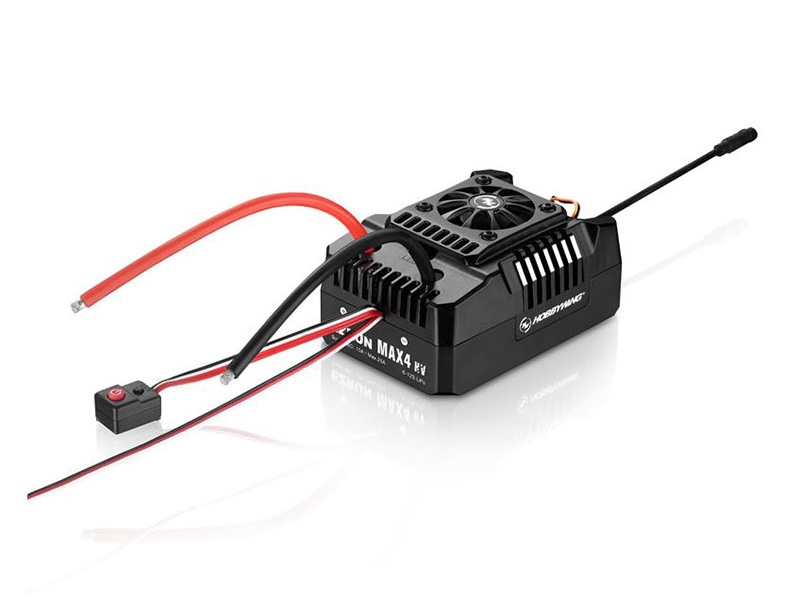

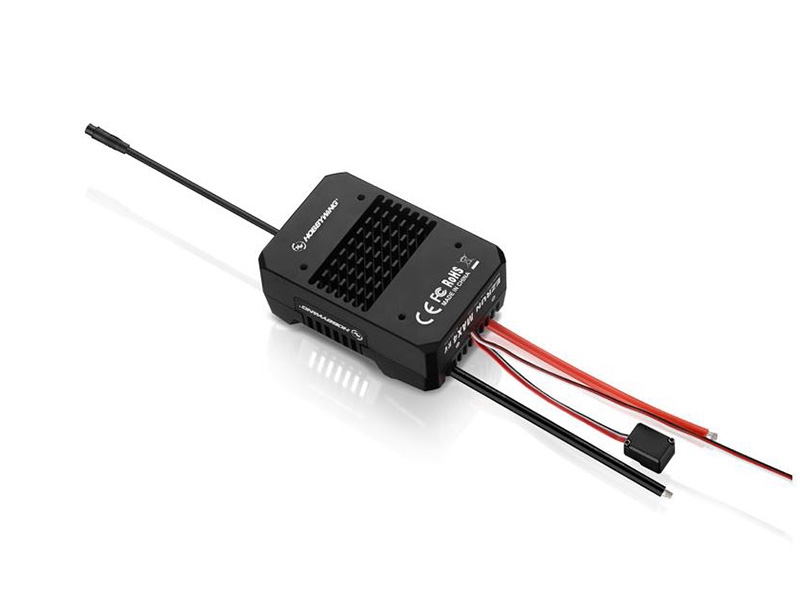

Hobbywing EZRUN MAX4 HV 12s ESC Speed Controller HW30104002
Original price was: £499.99.£449.99Current price is: £449.99.Save £50.00
Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
Description
Description
Hobbywing EZRUN MAX4 HV 12s ESC Speed Controller HW30104002
The Max4 HV ESC is the most sought-after ESC on the market. It’s dynamic and dominant specifications meets the needs of power-hungry users. It has a strong output power with excellent linearity at low speed and is operating on full-sensored mode.
FEATURES

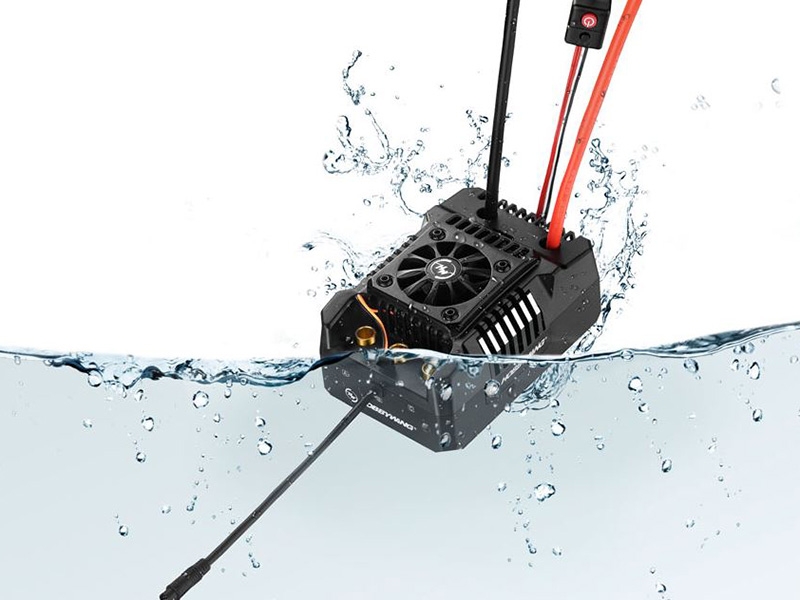

- The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
- Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
- Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
- Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
- Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
- Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
- Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.
SPECIFICATIONS
- Scale Vehicles: 1/4 – 1/5th
- Cont./Peak Current: 300A/2000A
- Motor Mode: Sensored and sensorless brushless motor
- Input: 6-12S Lipo
- Motor Limit: With 12S Lipo: KV≤600 70125 size motor
- BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
- Programming Port: Share with Fab interface
- Switch Mode: Electronic Switch
- Capacitor protection: Yes
- Waterproof: Yes
- Size (L.W.H) mm: 125 x 85 x 61.7 mm
- Weight (g): 775.4g
- Input Wires: Red-8AWG-200mm*1/Black-8AWG-200mm*1
- Motor Output Connectors: 8.00mm Gold (Female)
Specification
Specification
| Brand | HobbyWing |
|---|
