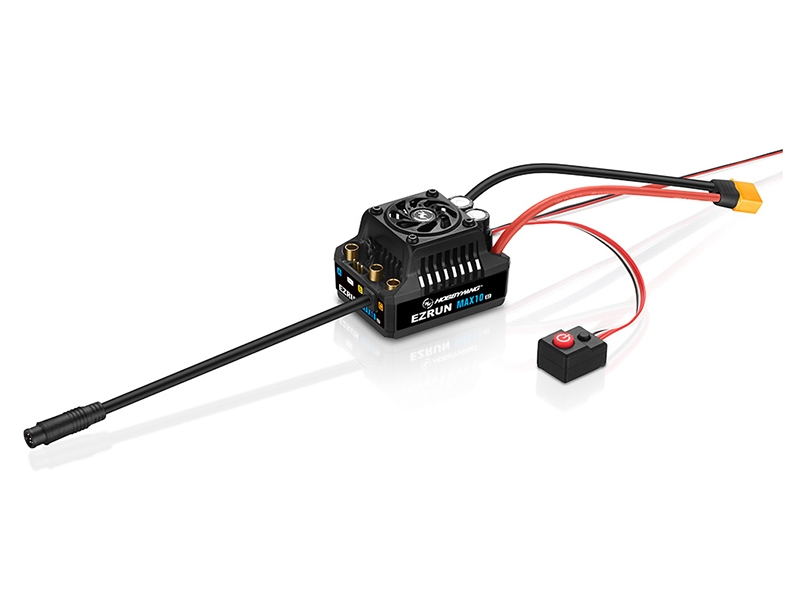

Hobbywing EZRUN MAX10 G2 – 140A ESC HW30102603
Original price was: £79.99.£71.99Current price is: £71.99.Save £8.00
Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
Description
Description
Hobbywing EZRUN MAX10 G2 – 140A ESC HW30102603
Compared with the previous generation, the Max10 G2 not only has strong explosive power and stable output power, but also has excellent low-speed linearity . It can not only easily realize violent start-up, straight-line high-speed, flying slopes, but also smooth low-speed walking
It supports turbo timing adjustment up to 32 degrees . It has a significant turbo timing effect when paired with EzRun 3652/3665 G3 , and the maximum speed can be increased by about 25% .
Patented frameless fan + smart start-stop technology
The side of the frameless fan has a large flow of air,blowing heat away from the integrated case radiator quickly.
Intelligent start-stop technology, intelligent start-stop fan,when the temperature is low, the fan is not activated, reducing noise and saving power; when the temperature rises to a certain level, the fan is activated to effectively dissipate heat.
Dynamic data acquisition
As convenient as ever.
After connecting the ESC to the OTA Bluetooth module , you can check the throttle, voltage, current, temperature, speed and other data in real time through the mobile APP to know the power running status; you can also grasp the power .
IP67 protection, 24/7 operation
The new induction line interface is waterproof design, the overall protection level is IP67 , and it can operate in various climatic conditions and harsh environments. Note: This ESC also supports sensored motors with common interfaces, and you need to purchase an adapter cable to realize it.
Specifications
Type
- Scale – 1/10th
- Brushed/Brushless – BL
- Sensored/Sensorless – SL
- Waterproof – Yes
- Cont./Peak Current – 140A/880A
- Input Voltage – 2-4S LiPo
- BEC Output – Switch Mode: 6V/7.4V,5A
Wires & Connectors
- Input Wires – Red-12AWG-150mm*1 Black-12AWG-150mm*1
- Output Connectors – XT60
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan
- Size – 30x30x10mm
- Voltage Range – 5-7.4V
- Powered by – BEC
ESC Programing via
- SET Button on ESC – Not Supported
- LED Program Box – Supported
- LCD Program Box – Supported
- Program Port – Independent programming port
Firmware
- Firmware Upgrade – Supported
Size & Weight
- Size – 53mm*39.5mm*37.2mm
- Weight – 120g (including wire plug)
Applications
Motors
- Sensorless brushless motor/ sensored brushless motor
Vehicles
- 1/10 th short truck/truck/monster
KV Rating/T Count
- 3S lithium battery: KV≤4000KV 3665 size motor
- 4S lithium battery: KV≤2600KV 4268 size motor
Specification
Specification
| Brand | HobbyWing |
|---|
