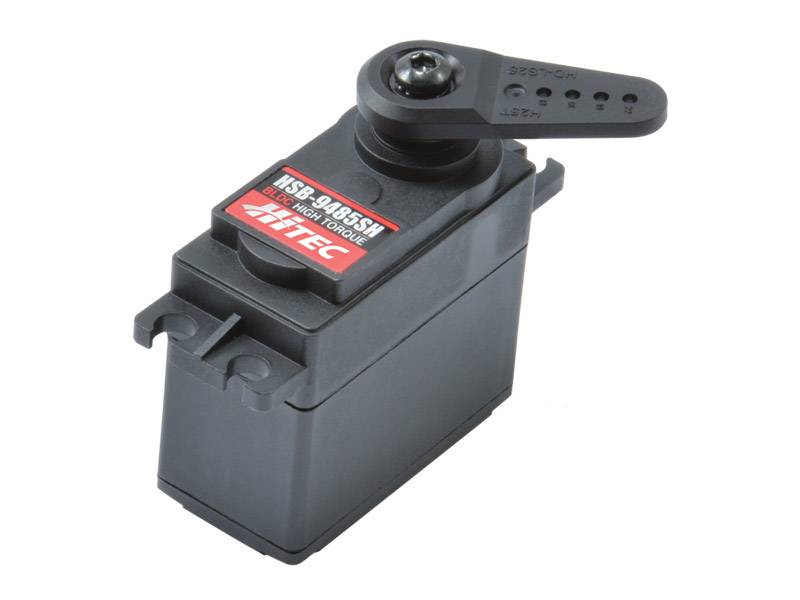

Hitec HSB9485SH Brushless High Voltage (HV) Ultra High Torque Servo

Name: Hitec HSB9485SH Brushless High Voltage (HV) Ultra High Torque Servo
SKU: 2220985
Availability: InStock

Original price was: £159.99.Current price is: £143.99.Save £16.00

In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received

Description

Special Features:

– Constant torque output: Revolutionary circuit and motor designs allow the HSB-9XXX Series servos to maintain their speed in a more consistent manner, regardless of load.
– Hybrid MPD 1st Gear: Unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle
– Custom NeuMotor: Designed by Steve Neu exclusively for the HSB-9XXX Series, these high performance, brushless motors provide long-standing durability and performance.

Brushless Advantages:

– At least FIVE TIMES longer-lasting than brushed servos.
– 30% faster response times.
– Greater resistance to jolts and vibration.
– Smoother operation.
– Same power consumption as brushed digital servos.
– Same compact case size as standard servos.
– Exceptionally durable geartrain.
– Smooth dual ball bearings

HS-9485SH Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	6.0V ~ 7.4V
Speed (Second @ 60°)	0.18 ~ 0.15
Maximum Torque Range oz. / in.	361
Maximum Torque Range kg. / cm.	26.0
Current Draw at Idle	30 mA
No Load Operating Current Draw	430 mA
Stall Current Draw	1,100 mA
Dead Band Width	1 µs
Physical Specifications
Dimensions (Inches)	1.57 x 0.78 x 1.45
Dimensions (Metric)	40.0 x 20.0 x 37.0
Weight (Ounces)	2.19
Weight (Gram)	62.0
Circuit Type	EBL Digital
Motor Type	Brushless
Gear Material	Steel
Bearing Type	Dual Ball Bearing
Output Shaft (type / Ømm)	H25T
Case Material	Plastic
Dust / Water Resistance	Splash Proof
Connector Gauge (AWG) / Strand Count	20 / 80

PLEASE NOTE: While compatible with most radio control devices, the regenerative braking feature of the HSB-93XX series servos may cause a problem if the device cannot accept a backflow of current. The types of devices that cannot accept this backflow are: Voltage Regulators, Power Safe Receivers and certain BEC circuits whether stand alone or integrated within an Electronic Speed Control. Check with the manufacturer or the Hitec website for a list of compatible models. If your device cannot accept a current backflow, then you must install a PAD (Power Absorbing Device – Hitec PN# 55756) as described in the manual. A PAD is included with every Hitec brushless servo.
