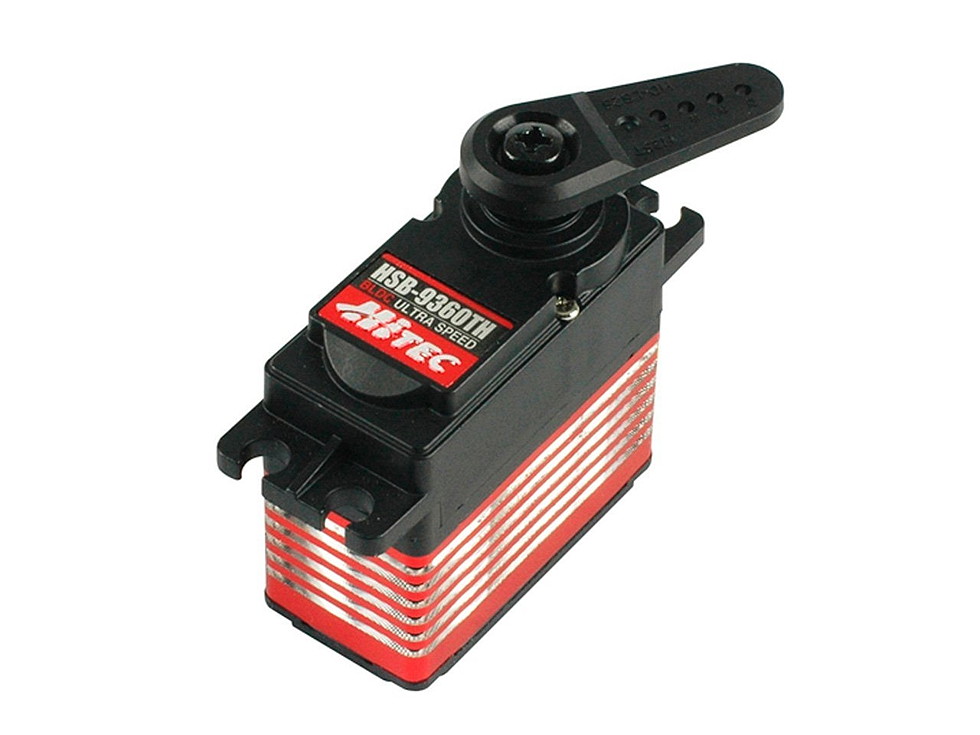

Hitec HSB9360TH Brushless High Voltage (HV) Ultra High Speed Servo
Original price was: £208.99.£188.09Current price is: £188.09.Save £20.90
In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
Description
Description
Special Features:
– Constant torque output: Revolutionary circuit and motor designs allow the HSB-9XXX Series servos to maintain their speed in a more consistent manner, regardless of load.
– Hybrid MPD 1st Gear: Unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle
– Custom NeuMotor: Designed by Steve Neu exclusively for the HSB-9XXX Series, these high performance, brushless motors provide long-standing durability and performance.
Brushless Advantages:
– At least FIVE TIMES longer-lasting than brushed servos.
– 30% faster response times.
– Greater resistance to jolts and vibration.
– Smoother operation.
– Same power consumption as brushed digital servos.
– Same compact case size as standard servos.
– Exceptionally durable geartrain.
– Smooth dual ball bearings
PLEASE NOTE: While compatible with most radio control devices, the regenerative braking feature of the HSB-93XX series servos may cause a problem if the device cannot accept a backflow of current. The types of devices that cannot accept this backflow are: Voltage Regulators, Power Safe Receivers and certain BEC circuits whether stand alone or integrated within an Electronic Speed Control. Check with the manufacturer or the Hitec website for a list of compatible models. If your device cannot accept a current backflow, then you must install a PAD (Power Absorbing Device – Hitec PN# 55756) as described in the manual. A PAD is included with every Hitec brushless servo.
HS-9360TH Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.08 ~ 0.06 |
| Maximum Torque Range oz. / in. | 236 |
| Maximum Torque Range kg. / cm. | 17 |
| Current Draw at Idle | 27 mA |
| No Load Operating Current Draw | 250 mA |
| Stall Current Draw | 2,100 mA |
| Dead Band Width | 1 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.57 x 0.79 x 1.50 |
| Dimensions (Metric) | 40.0 x 20.0 x 38.0 |
| Weight (Ounces) | 2.4 |
| Weight (Gram) | 68.0 |
| Circuit Type | EBL Digital |
| Motor Type | Brushless |
| Gear Material | Titanium |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | H25T |
| Case Material | Plastic / Aluminum |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 20 / 80 |
Specification
Specification
| Servo Power | 15.0kg to 24.9kg |
|---|---|
| Servo Voltage | Servo 6v, Servo 7.4v |
| Servo Operation | Digital Servo |
| Brand | Hi Tec |
| Gear Material | Metal Gear |
| Servo Size | Standard |
