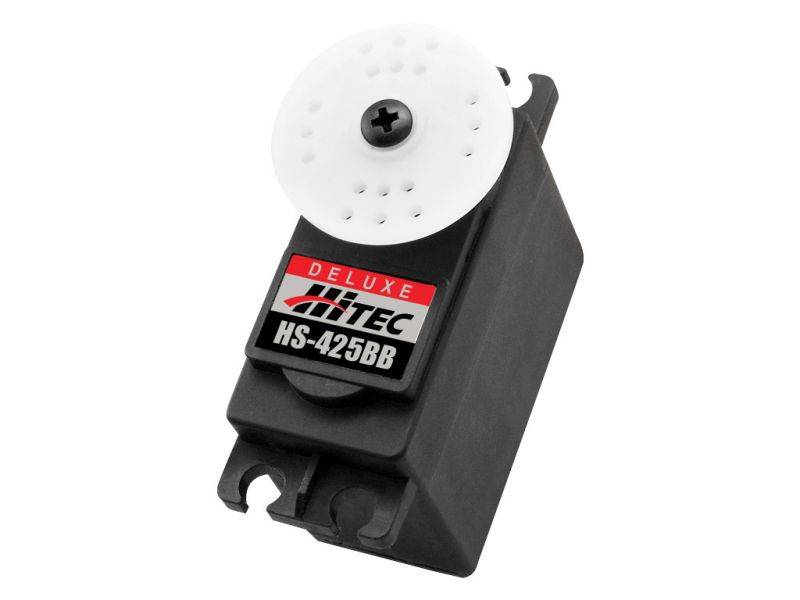

HiTec HS425BB Deluxe Servo Dual Ball Bearings
Original price was: £16.50.£14.85Current price is: £14.85.Save £1.65
In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
Description
Description
HS425BB Deluxe Servo Dual Ball Bearings
Key Features
- Long life
- Dual ball bearings
- Indirect potentiometer drive
HS-425BB Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.21 ~ 0.16 |
| Maximum Torque Range oz. / in. | 46 ~ 57 |
| Maximum Torque Range kg. / cm. | 3.3 ~ 4.1 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 150 mA |
| Stall Current Draw | 800 mA |
| Dead Band Width | 8 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.59 x 0.77 x 1.44 |
| Dimensions (Metric) | 40.6 x 19.8 x 36.6 |
| Weight (Ounces) | 1.60 |
| Weight (Gram) | 45.5 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
Specification
Specification
| Servo Power | 3.0kg to 7.9kg |
|---|---|
| Servo Voltage | Servo 4.8v, Servo 6v |
| Servo Operation | Analog Servo |
| Brand | Hi Tec |
| Gear Material | Plastic Gear |
| Servo Size | Standard |
