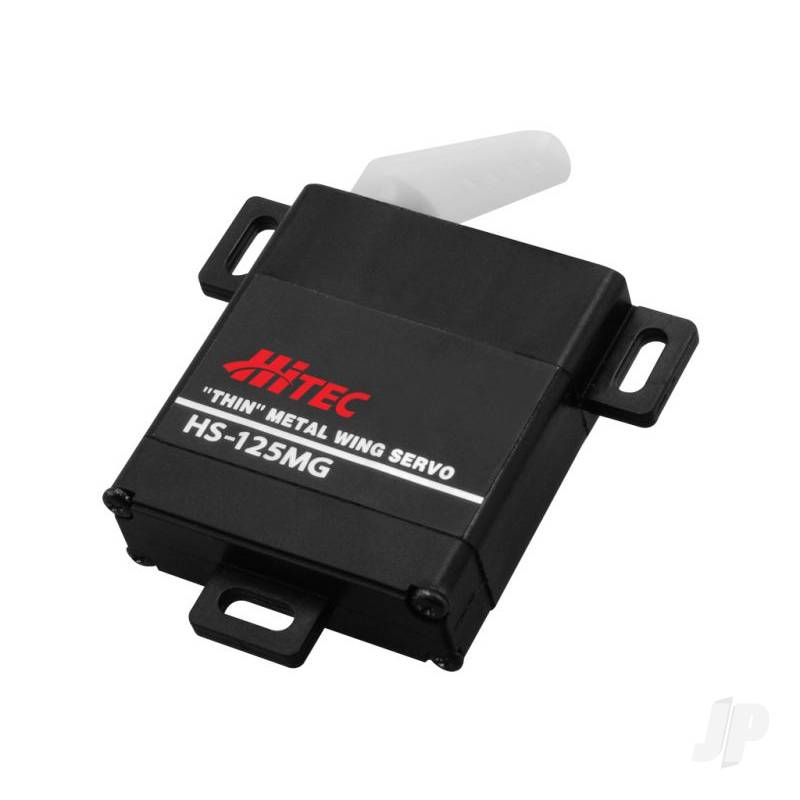

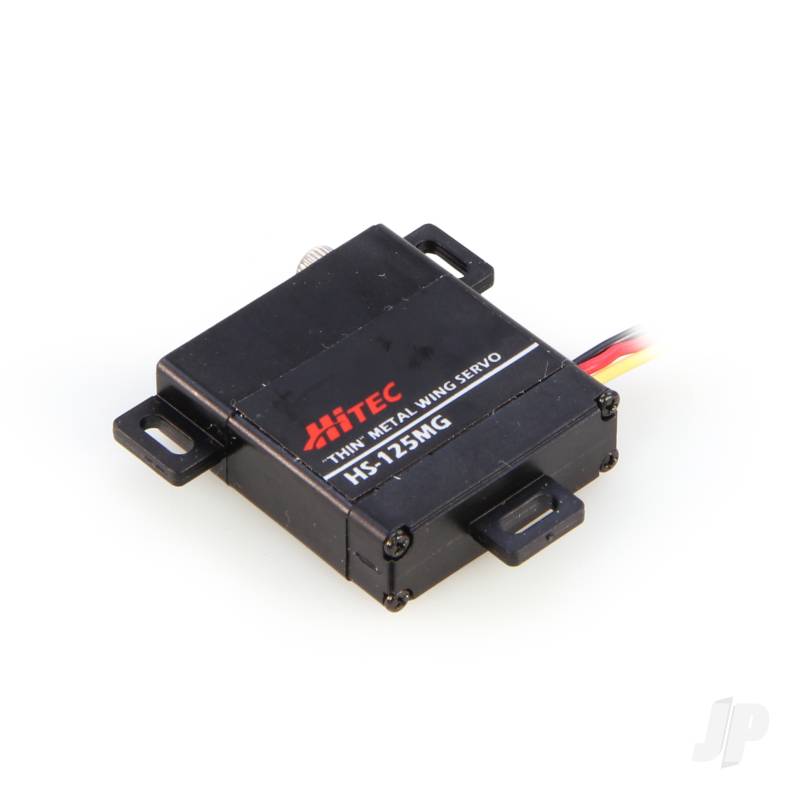

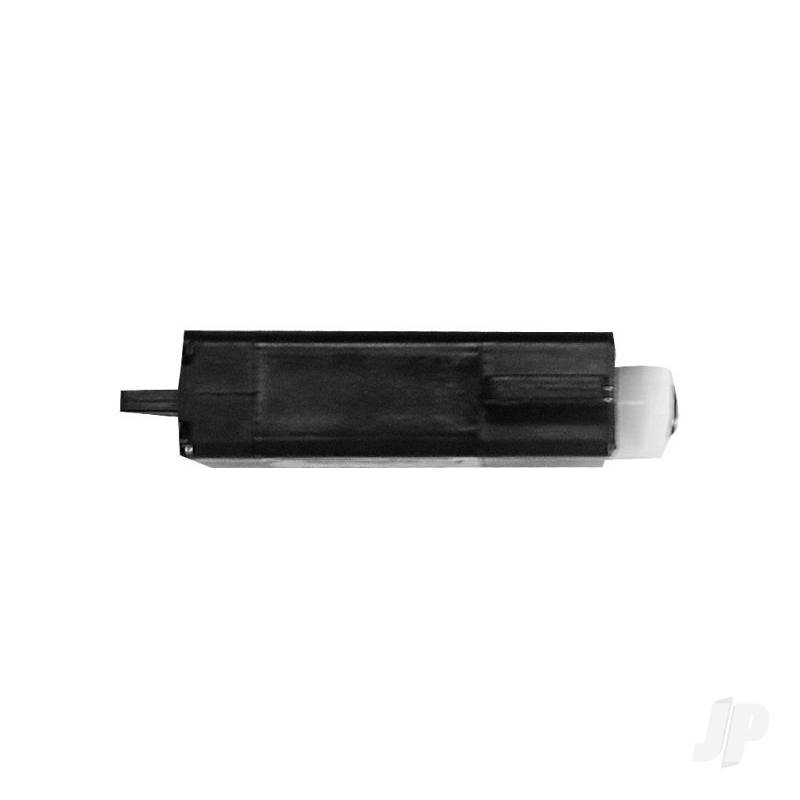

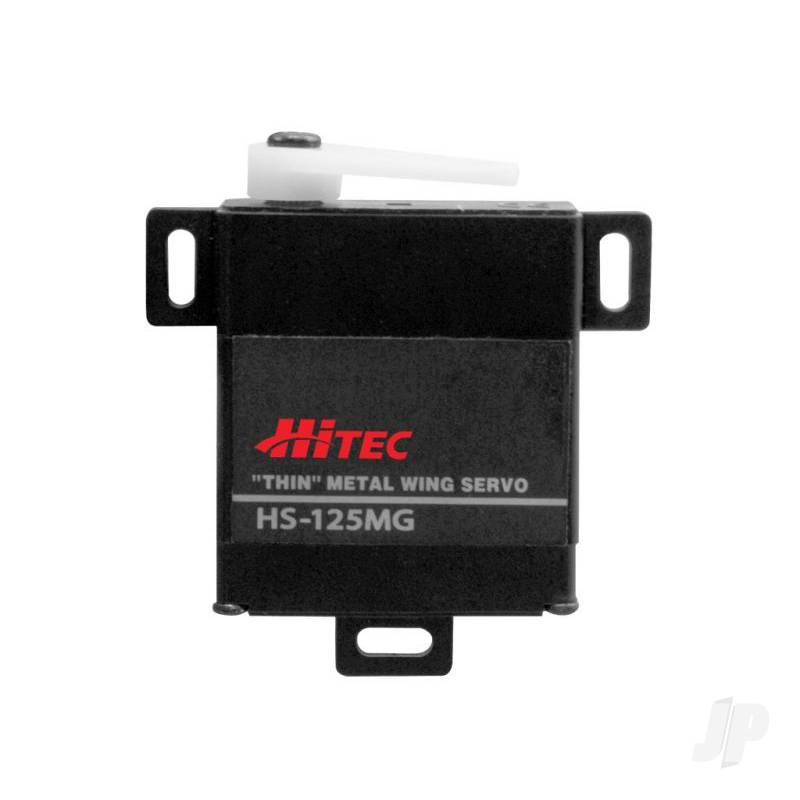

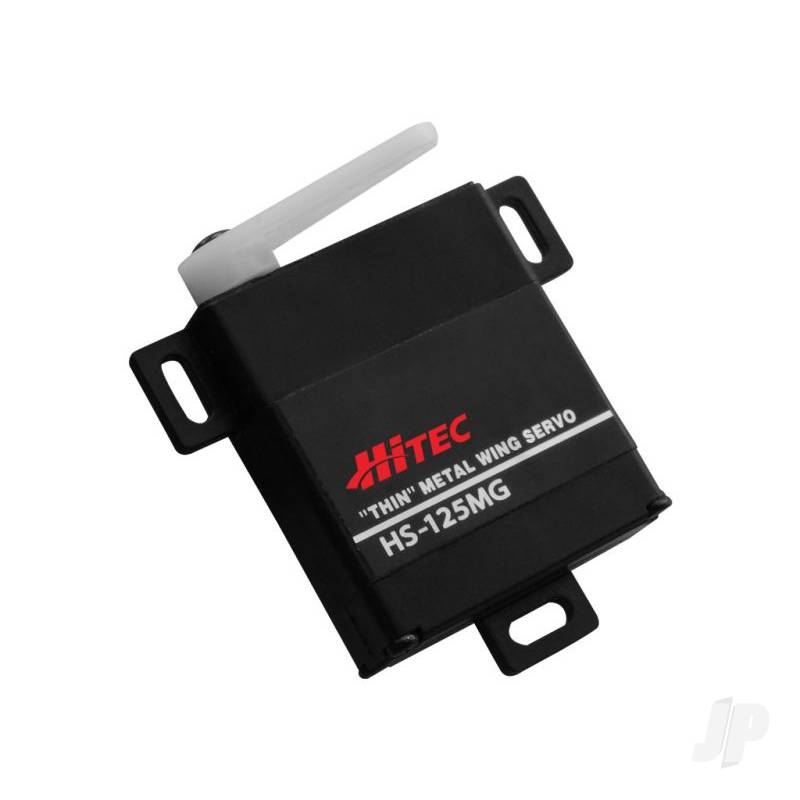

Hitec HS125MG Metal Gear Slim Wing Servo
Original price was: £35.25.£31.73Current price is: £31.73.Save £3.52
In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
Description
Description
HS-125MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.17 ~ 0.13 |
| Maximum Torque Range oz. / in. | 42 ~ 49 |
| Maximum Torque Range kg. / cm. | 3.0 ~ 3.5 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 230 mA |
| Stall Current Draw | 1,200 mA |
| Dead Band Width | 1 µs |
| Physical Specifications | |

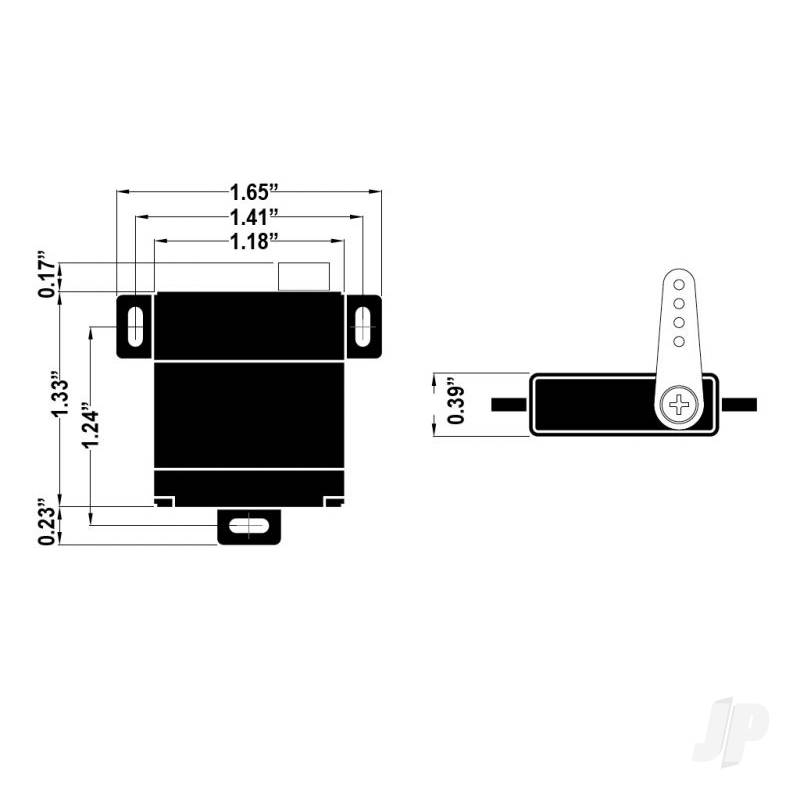

| Dimensions (Inches) | 1.18 x 0.39 x 1.33 |
| Dimensions (Metric) | 30.0 x 10.0 x 34.0 |
| Weight (Ounces) | 0.84 |
| Weight (Gram) | 24.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Micro 23 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
Specification
Specification
| Servo Power | 3.0kg to 7.9kg |
|---|---|
| Servo Voltage | Servo 4.8v, Servo 6v |
| Servo Operation | Analog Servo |
| Brand | Hi Tec |
| Gear Material | Metal Gear |
| Servo Size | Low Profile |
