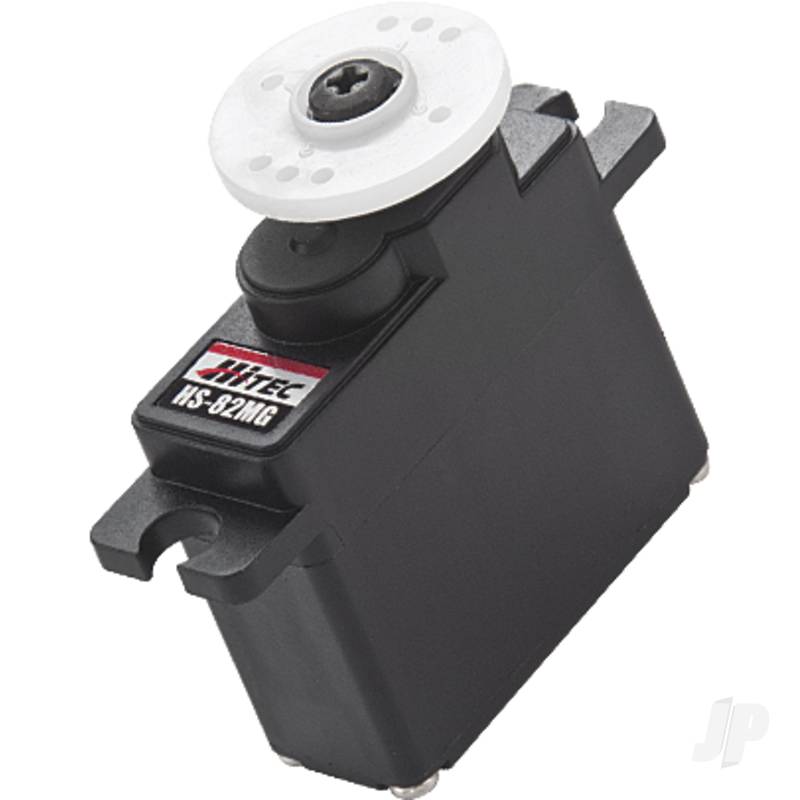

Hitec HS-82MG Micro Servo With Metal Gears
Original price was: £26.50.£23.85Current price is: £23.85.Save £2.65
In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
Description
Description
HS-82MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.12 ~ 0.10 |
| Maximum Torque Range oz. / in. | 39 ~ 47 |
| Maximum Torque Range kg. / cm. | 2.8 ~ 3.4 |
| Current Draw at Idle | 10 mA |
| No Load Operating Current Draw | 280 mA |
| Stall Current Draw | 1,800 mA |
| Dead Band Width | 5 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.17 x 0.47 x 1.16 |
| Dimensions (Metric) | 29.8 x 12.0 x 29.6 |
| Weight (Ounces) | 0.66 |
| Weight (Gram) | 19.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | None |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
Specification
Specification
| Servo Power | 3.0kg to 7.9kg, up to 2.9kg |
|---|---|
| Servo Voltage | Servo 4.8v, Servo 6v |
| Servo Operation | Analog Servo |
| Brand | Hi Tec |
| Gear Material | Metal Gear |
| Servo Size | Micro / Mini |
