CEN 2024 M-Sport Ford Puma Rally1 1/8 RTR Brushless CEN9000

Description

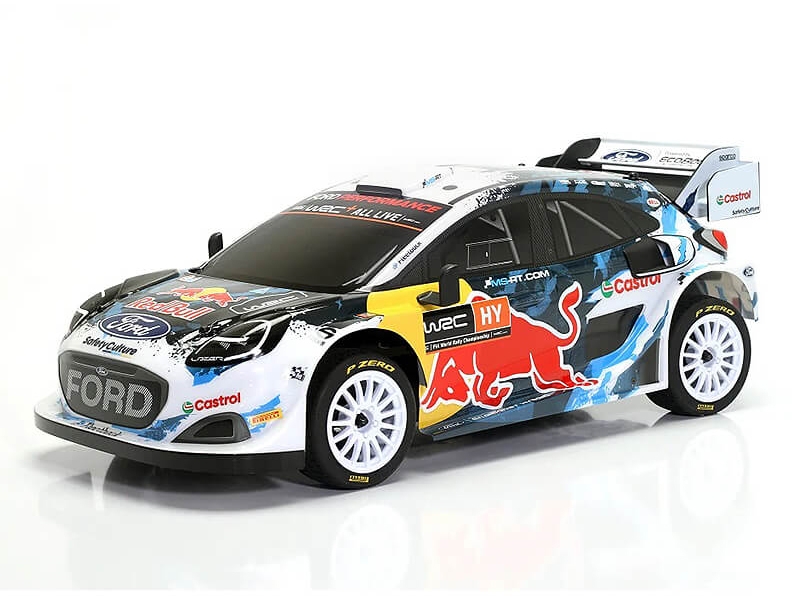

CEN 2024 M-Sport Ford Puma Rally1 1/8 RTR Brushless CEN9000

CEN 2024 M-Sport Ford Puma Rally1 1CEN Racing’s new officially licensed 2024 M-Sport Ford Puma Rally1 Brushless 1/8 RTR is sure to be popular with worldwide rally fans. Featuring a fully detailed and beautifully decaled bodyshell, injection moulded rear wing, mirrors, side intakes, rear chassis diffuser and Pirelli P-Zero styled wheels and tyres the M-Sport is ready for your next Special Stage.

Underneath, a new chassis design features next generation aerodynamic lower suspension arms and oil filled shock absorbers, mounted to 3mm front and rear aluminium shock towers. A 3mm aluminium chassis mounts a full time 4wd transmission with metal gears and 6-gear bevel differentials.

Hobbywing 100A 3S LiPo rated brushless speed control and Cen Racing 3658 3000kv brushless motor provide different levels of power to suit all surfaces, while steering is controlled by a 12kg metal geared Savox servo.

RC rally redefined with the Cen Racing M-Sport Ford Puma.

Features
ESC

100A WP-MAX10-SCT-100A-3S RTR Sensor-less with T-Plug (Powered by HobbyWing).
2-3S Li-po (Lithium-polymer) or 6-9 Cell Ni-Mh Batteries.
Water-Proof and Dust-Proof for All Weather.
Super Internal Switch-Mode BEC with 6V / 7.4V for Usage with High Voltage Servo.
Built-In Capacitor Module.
Automatic Throttle Range Calibration.
Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.
Over-Heat Protection and Throttle Signal Loss Protection.
5 Levels of acceleration/punch.
9 Levels of maximum brake force.
Motor

CEN Racing High Performance 3658 3000kv Brushless Motor (Sensorless).
Servo

12Kg Metal Gear Servo (By Savox).
4.8V – 0.26 sec/60° 10.0 kg-cm.
6.0V – 0.23 sec/60° 12.0 kg-cm.
With 25T Horn Gear Spline.
Radio System

AMP-30 TX 3-Channel Transmitter.

Frequencies: 2.4GHz.
Digital Trimming.
Steering Dual-Rate (ST D/R) Adjustment.
End Point Adjustment (EPA).
Build in Failsafe.
Power Supply: 4 x AA Alkaline (Not Included).
AMP30 RX 3-Channel Receiver.

Frequency: 2.4GHz.
Power Supply: DC 4.8 ~ 6.0V.
Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).
Body

Official Licensed 2024 M-Sport Ford Puma Rally 1 Edition
Fully Detailed Injection-Molded Body Accessories Body Details
Size: Length 20.08inches (510mm) / Width 9.45 inches (240mm)
Chassis

3mm Aluminum Chassis
Front and Rear 3mm Aluminium Shock Towers
Aluminium Arm Brace
Full Precision Ball Bearing Support
Wider Body Mount Positions for Better Support
Front Skid plate with Durable Foam Bumper
Injection-Molded Rear Diffuser
Easy Access Battery Tray
Battery Tray Size 142mm x 48mm
Suspension

Aerodynamic Lower Arm Suspension Design
Big Bore Oil Filled Adjustable Coil Over Shocks
12mm Over Size Shock Body with 3mm Hardened Steel Polished Shaft
Racing Spring
Adjustable Turnbuckles
Adjustable Wheelbase +/- 6mm
Gear Ratio

Spur / Pinion 46/14T 3.29:1
Ring & Pinion 40/17T 2.35:1
Drivetrain

Full Time 4-Wheels Drive
Center Shaft Drivetrain for more power transferred to the wheels
Metal Transmission Gears

Aluminium Adjustable Motor Mount
Oil Filled Two Differential Drive System
Center Direct Drive
Hight Efficient Transmission System
6 Gear Bevel Gear Type Differential
Front / Rear Harden Steel Dog Bone and outdrives
Wheel

High Impact & Light Weight WRC Racing Wheel 56 X 35.50 mm.
Tyres

High Performance Racing Rubber Compound Tyres 56 x 80 x 35.50 mm.
Specifications
Chassis Length: 18.11 inches (460mm)
Chassis Width: 9.06 inches (230mm)
Wheelbase: 11.80 inches (300mm)
Ground Clearance: 0.98 inches (25mm)
Weight: 5.51 lb. 2.5kg

Required To Complete
Battery and charger are not included (Recommend 2S – 3S Lipo Battery).
